KTVN Series

Part No.: Description:
EKTVN-U0XZ C5e, 90 Degree UTP Keystone Jack, IDC: Krone, w/o Cap
EKTVN-U1XZ C5e, 90 Degree UTP Keystone Jack, IDC: Krone, w/h Cap
EKTVM-U0XZ C5e, 90 Degree UTP Keystone Jack, IDC: 110, w/o Cap
EKTVM-U1XZ C5e, 90 Degree UTP Keystone Jack, IDC: 110, w/h Cap
6KTVN-U0XZ C6, 90 Degree UTP Keystone Jack, IDC: Krone, w/o Cap
6KTVN-U1XZ C6, 90 Degree UTP Keystone Jack, IDC: Krone, w/h Cap
6KTVM-U0XZ C6, 90 Degree UTP Keystone Jack, IDC: 110, w/o Cap
6KTVM-U1XZ C6, 90 Degree UTP Keystone Jack, IDC: 110, w/h Cap

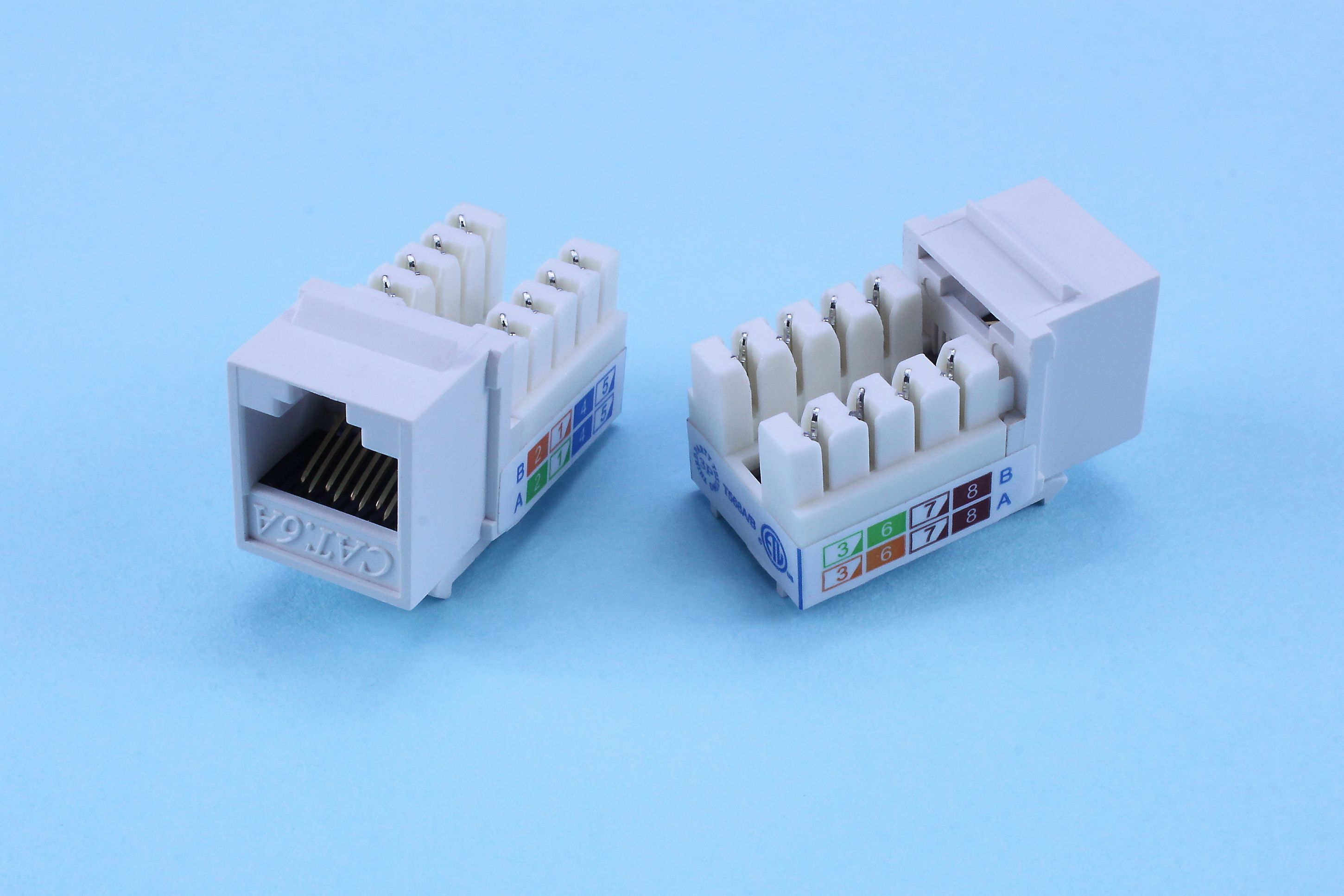

GKTVN-U0XZ C6A, 90 Degree UTP Keystone Jack, IDC: Krone, w/o Cap

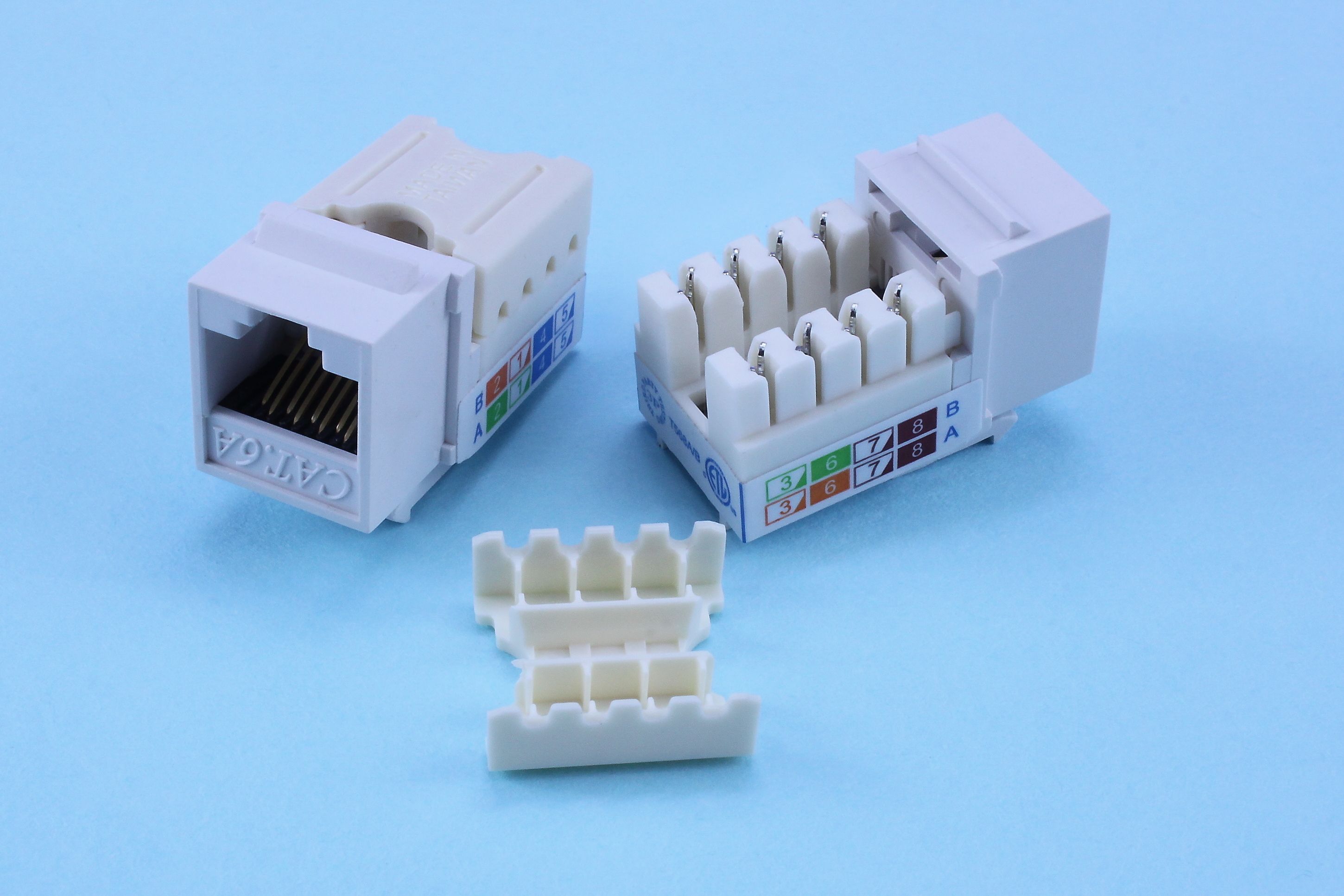

GKTVN-U1XZ C6A, 90 Degree UTP Keystone Jack, IDC: Krone, w/h Cap
GKTVM-U0XZ C6A, 90 Degree UTP Keystone Jack, IDC: 110, w/o Cap
GKTVM-U1XZ C6A, 90 Degree UTP Keystone Jack, IDC: 110, w/h Cap

Specifications

  • - RoHS
  • - Meets C5e EIA/TIA 568B Standard
  • - Meets C6 EIA/TIA 568B Standard
  • - Meets C6A EIA/TIA 568C Standard
  • - For 22-26 AWG
  • - IDC Punch Down Cycle: Over 250 Cycles (min.)
  • - Jack Insertion Cycle: Over 2000 Cycles (min.)
  • - Operation Temperature: -40 ~ +70 Degree Celsius

  • - Body: Fireproof ABS UL-94V0
  • - Jack: 8P8C 50 micro inches gold plated
  • - PCB: FR-4 / UL-94V0
  • - IDC Cap: Fireproof ABS UL-94V0
  • - IDC Body: Fireproof ABS UL-94V0
  • - IDC Pin: Bronze & Tinned

  • - Insulation Resistance: 500M ohms (min.)
  • - Contact Resistance: 20m ohms (max.)
  • - Current Rating: 1.5 Amps.
  • - DC Resistance: 0.1 ohms (max.)
  • - Withstanding Volatage: 1000 VAC RMS @ 60Hz/1min.
