FA Series

Part No.: Description:
EFA-U1XZ Cat5e Faceplate, FA Type: 80 x 80mm, Inner: Angle PCB Module: 25 x 50mm,
UTP, 1 Port, IDC: Dual
EFA-S1XZ Cat5e Faceplate, FA Type: 80 x 80mm, Inner: Angle PCB Module: 20 x 50mm,
STP, 1 Port, IDC: Dual
EFA-U2XZ Cat5e Faceplate, FA Type: 80 x 80mm, Inner: Angle PCB Module: 50 x 50mm,
UTP, 2 Port, IDC: Dual
EFA-S2XZ Cat5e Faceplate, FA Type: 80 x 80mm, Inner: Angle PCB Module: 50 x 50mm,
STP, 2 Port, IDC: Dual
6FA-U1XZ Cat6 Faceplate, FA Type: 80 x 80mm, Inner: Angle PCB Module: 25 x 50mm,
UTP, 1 Port, IDC: Dual
6FA-S1XZ Cat6 Faceplate, FA Type: 80 x 80mm, Inner: Angle PCB Module: 20 x 50mm,
STP, 1 Port, IDC: Dual
6FA-U2XZ Cat6 Faceplate, FA Type: 80 x 80mm, Inner: Angle PCB Module: 50 x 50mm,
UTP, 2 Port, IDC: Dual

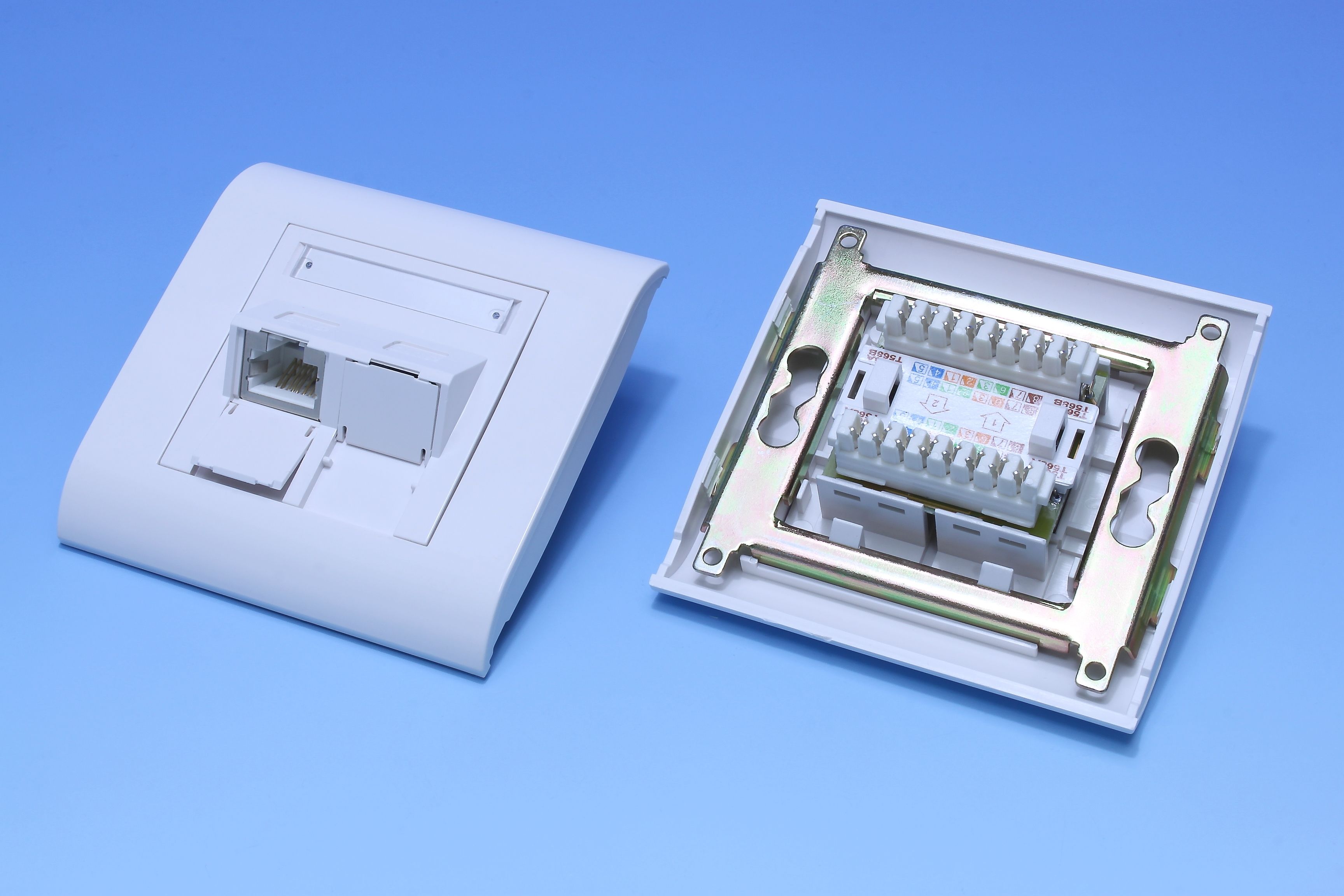

6FA-S2XZ Cat6 Faceplate, FA Type: 80 x 80mm, Inner: Angle PCB Module: 50 x 50mm,
STP, 2 Port, IDC: Dual

Specifications

  • - RoHS
  • - Meets C5e EIA/TIA 568B Standard
  • - Meets C6 EIA/TIA 568B Standard
  • - For 22-26 AWG
  • - For 110 or Krone punch-down Tool/strong>
  • - IDC Punch Down Cycle: Over 250 Cycles (min.)/strong>
  • - Jack Insertion Cycle: Over 2000 Cycles (min.)/strong>
  • - Operation Temperature: -40 ~ +70 Degree Celsius

  • - Body: Fireproof ABS UL-94V0
  • - Jack: 8P8C 50 micro inches gold plated
  • - PCB: FR-4/UL-94V0
  • - IDC Body: Fireproof ABS UL-94V0
  • - IDC Pin: Bronze & Tinned
