PM 89 Type (Metallic Plate)

Part No.: Description:
EPM89-080X C5e 10" Wall Panel, Metallic Plate, UTP, 8 Ports, IDC: Dual, w/o Cap
EPM89-081X C5e 10" Wall Panel, Metallic Plate, UTP, 8 Ports, IDC: Dual, with Cap
EPM89-120X C5e 10" Wall Panel, Metallic Plate, UTP, 12 Ports, IDC: Dual, w/o Cap
EPM89-121X C5e 10" Wall Panel, Metallic Plate, UTP, 12 Ports, IDC: Dual, with Cap

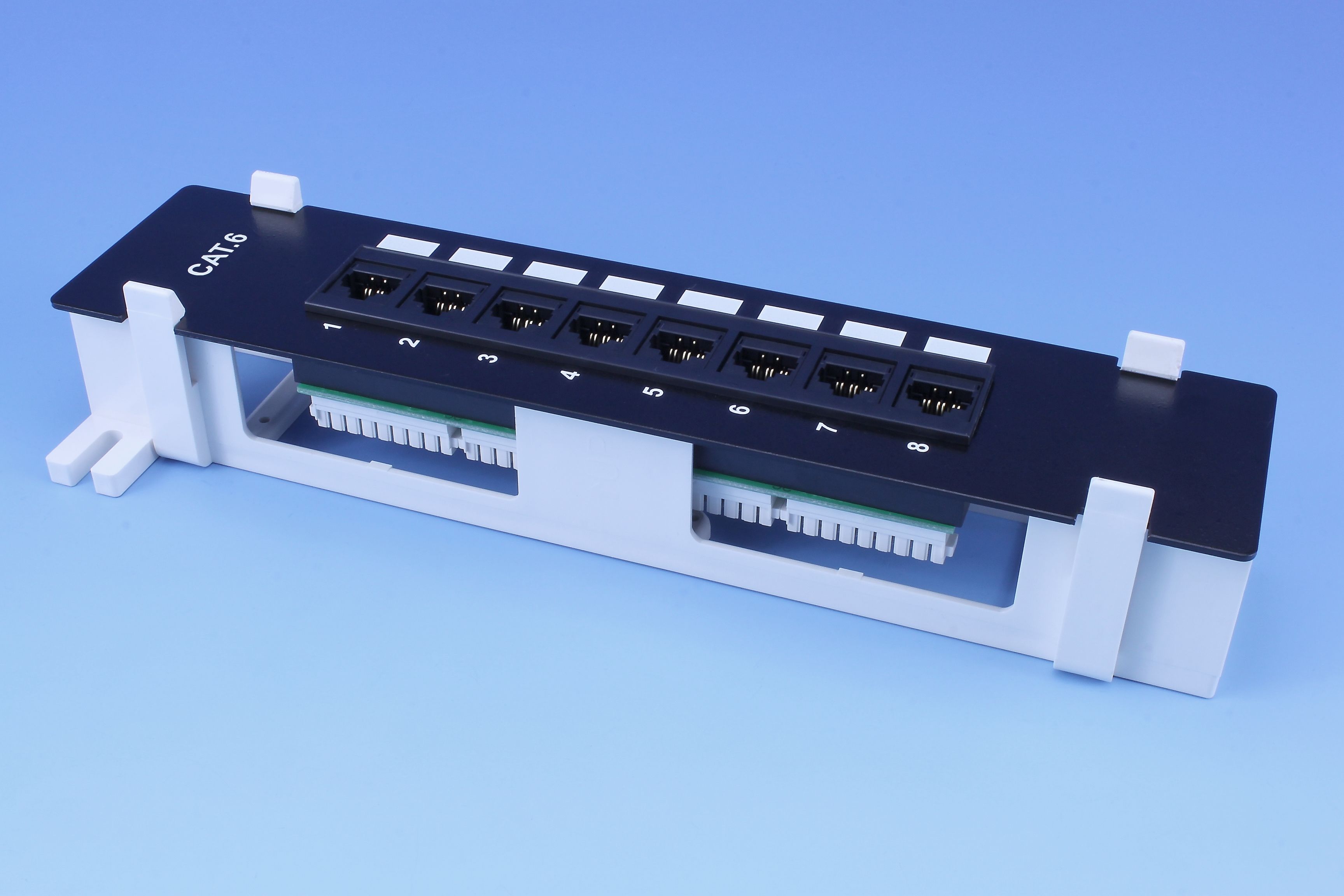

6PM89-080X C6 10" Wall Panel, Metallic Plate, UTP, 8 Ports, IDC: Dual, w/o Cap
6PM89-081X C6 10" Wall Panel, Metallic Plate, UTP, 8 Ports, IDC: Dual, with Cap

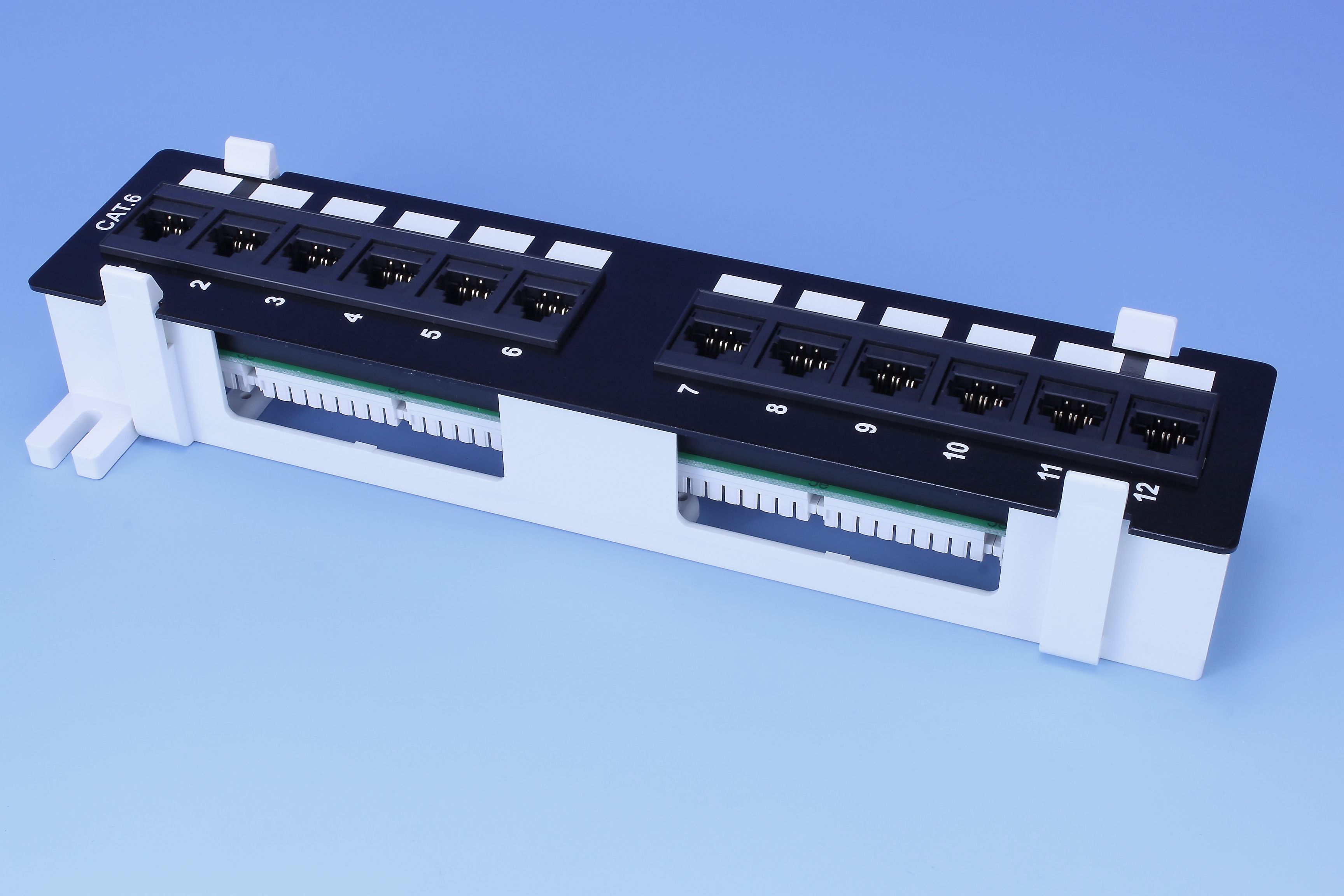

6PM89-120X C6 10" Wall Panel, Metallic Plate, UTP, 12 Ports, IDC: Dual, w/o Cap
6PM89-121X C6 10" Wall Panel, Metallic Plate, UTP, 12 Ports, IDC: Dual, with Cap

Specifications

  • - RoHS
  • - Meets C6 EIA/TIA 568B Standard
  • - For 22-26 AWG
  • - IDC Punch Down Cycle: Over 250 Cycles (min.)
  • - Jack Insertion Cycle: Over 2000 Cycles (min.)
  • - Operation Temperature: -40 ~ +70 Degree Celsius

  • - Panel: Metal (SPCC)
  • - Jack: 8P8C 50 micro inches gold plated
  • - PCB: FR-4 / UL-94V0
  • - IDC Body: Fireproof ABS UL-94V0
  • - IDC Pin: Bronze & Tinned
